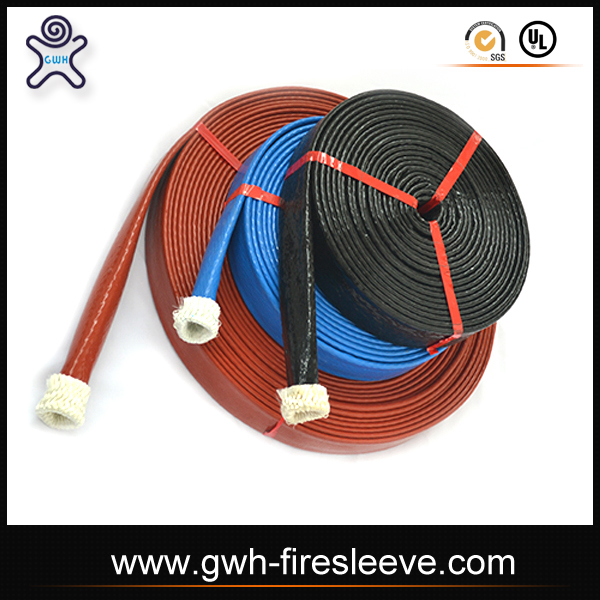

Composite fire sleeve is designed for metallurgical industry which often accompanied by fire, radiant heat, hot melt splash harsh situation developed. Because the metallurgical process for the job in the cable, hose, tubing, equipment and operating personnel are present security risks, so safety first in a production complex fire casing innovative design principles are as follows:
Protection philosophy of science, new structure design;
Multi-layer combinations, the latest multi-layered defense concept, thermal layers group layers of protection;
Environmentally friendly materials, pollution-free, safe and reliable;
Self-closing type structure, with a full set of components, the installation is simple and convenient.
Composite fire sleeve more prominent advantage is its performance characteristics:
High temperature: continuous operating temperature of 1000 ℃, high temperature 1700 ℃ can withstand 15 to 30 seconds. High-temperature thermal radiation barrier can melt splashes and flame to avoid burns.
Insulation: 98% of the heat barrier outside intrusion, keeping the internal good working condition.
Waterproof: can stop the stream of water, water vapor.
Energy: After use, the protective effect is increased by 5 to 6 times, reduce maintenance, reduce media evaporation and reduce costs.
Specific parameters and specifications are as follows:
Temperature range: Operating temperature ≤ 1000 ℃, 1700 ℃ short
Diameter (mm): Ф 20, Ф 30, Ф 40, Ф 50, Ф 65, Ф 80, Ф 100, Ф 120 (other specifications can be customized)
Single length (m): 1m, 1.6m, 2m, 4m (other specifications can be customized)
Supporting fixture: NO.one (20-35), INO.two(35-50), NO.three(50-80), NO.four(80 and over)
