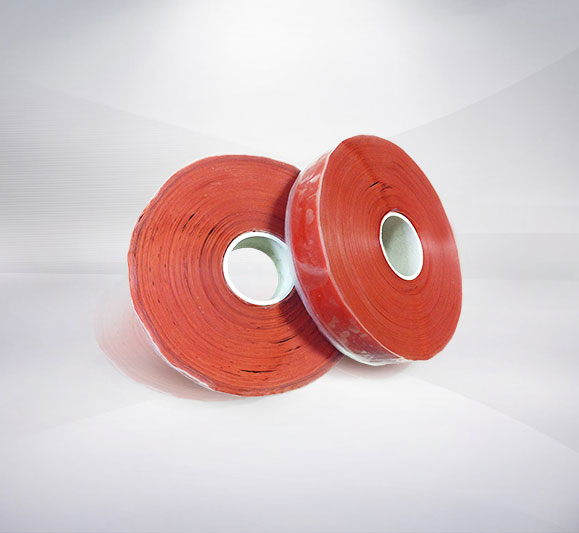

Silicone Rubber End – Warp Tape

Silicone Rubber End-Wrap Tape is made of high temperature compression silicone rubber
Silicone Rubber End Wrap Tape that has no adhesive, it is self bonding to itself and our silicone rubber coated sleeves and tapes, providing a waterproof/gas tight end to the installation of Sleeve over hoses and cables.
This Tape has excellent flexibility of Silicon Elastomer and strength of Fiber glass fabric .It retains high dielectric strength over a wide temperature range 40 °C to 260 °C. It has good humidity barrier, resists are tracking and corona resistance. Suitable for application where high starting loads and greater switching frequency is required.

Recommended For

The special formulation of silicone rubber sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. End Wrap Tape also provides protection from ozone, UV and abrasion. 50% overlap when wrapping the tape around firesleeve, wire, hoses and cables.

Specifications

  • Heat resistant silicone tape
  • High-temperature arc-and track-resistant tape
  • Waterproof, heat resistant
  • Popular in Europe
  • Self fusing silicone rubber tape

Size 25mm, 38mm, 50mm, 100mm
Thickness 0.4mm, 0.50mm, 1mm or customized
Colour black, blue red, yellow, transparent, white, green   ( any color can be requested)
Feature Excellent track resistance
Excellent arc resistance
Excellent ozone resistance
High dielectric strength
Workable in extremely low temperature
water-proof
Applications • Automotive repair
• Jacketing high voltage terminations
• Motor lead insulation
• Boat rigging wrapping
• Flexible heater repair
• Extension cord "connection" wrapping
• Heavy duty industrial pipe wrapping
• Tool handle wrapping
• "Final wrap" for Electrical distribution connections
• Power & hand toll insulation
• Underwater uses
• Emergency radiator hose repairs; emergency insulating&barrier tape
• Fishing industry uses
• Military applications
• Insulating generator coils
• Temporary hose repairs
• Harness wrapping: automotive, aircraft, protective
